SQL361E40
Electromotoric actuator, 40Nm, 90°, AC 230 V, DC 0…10 V, 4…20 mA control signal
S55162-A130
New product

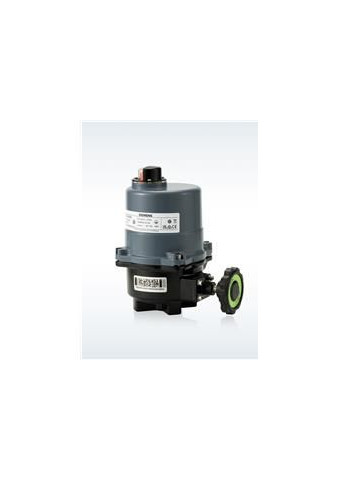

Siemens SQL361E40
Electromotoric actuator, 40Nm, 90°, AC 230 V, DC 0…10 V, 4…20 mA control signal Electromotoric actuator for operation of VFW41.., VFL41.. butterfly valves from DN80 to DN125 as shutoff and control valves in heating, ventilation and air conditioning systems, no mounting kits required. Technical Specifications Power consumption: 45 VA Positioning time: 50 Hz:24 s Spring return function: No Degree of protection: IP67 Ambient temperature, operation: -20…65 °C -4…149 ºF Medium temperature: -30…120 °C Ambient humidity, operation: 15…100 % r.h. Dimensions (W x H x D): 145 x 212 x 171 mm Mounting position: Upright to horizontal Operating voltage: AC 207…253 V, 230 V Position feedback: DC 0…10 V, 4…20 mA Auxiliary switch: 2
