SQL341E25
Electromotoric actuator, 25Nm, 90°, AC 230 V, on/off and 3P
S55162-A124
New product

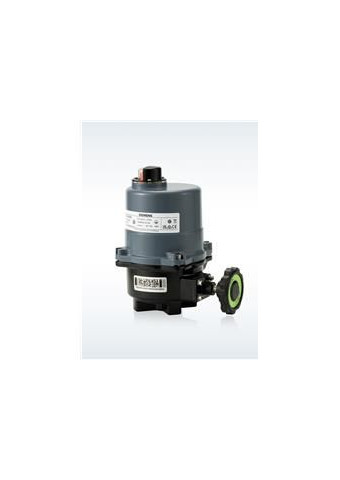

Siemens SQL341E25
Electromotoric actuator, 25Nm, 90°, AC 230 V, on/off and 3P Electromotoric actuator for operation of VFW41.., VFL41.. butterfly valves from DN40 to DN65 as shutoff and control valves in heating, ventilation and air conditioning systems, no mounting kits required Technical Specifications Power consumption: 45 VA Positioning time: 50 Hz:17 s Spring return function: No Degree of protection: IP67 Ambient temperature, operation: -20…65 °C -4…149 ºF Medium temperature: -30…120 °C Ambient humidity, operation: 15…100 % r.h. Dimensions (W x H x D): 145 x 192 x 171 mm Mounting position: Upright to horizontal Operating voltage: AC 207…253 V, 230 V Auxiliary switch: 2
