SQL361E100
Electromotoric actuator, 100 Nm, 90°, AC 230 V, DC 0…10 V, 4…20 mA control signal
S55162-A131
New product

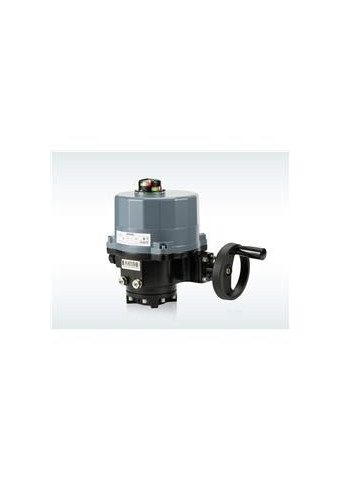

Siemens SQL361E100
Electromotoric actuator, 100 Nm, 90°, AC 230 V, DC 0…10 V, 4…20 mA control signal Electromotoric actuator for operation of VFW41.., VFL41.. butterfly valves from DN150 to DN200 as shutoff and control valves in heating, ventilation and air conditioning systems, no mounting kits required. Technical Specifications Power consumption: 91 VA Positioning time: 50 Hz:39 s Spring return function: No Degree of protection: IP67 Ambient temperature, operation: -20…65 °C -4…149 ºF Medium temperature: -30…120 °C Ambient humidity, operation: 15…100 % r.h. Dimensions (W x H x D): 202 x 275 x 367 mm Mounting position: Upright to horizontal Operating voltage: AC 207…253 V, 230 V Position feedback: DC 0…10 V, 4…20 mA Auxiliary switch: 2
