SQL341E40
Electromotoric actuator, 40 Nm, 90°, AC 230 V, on/off and 3P
S55162-A125
New product

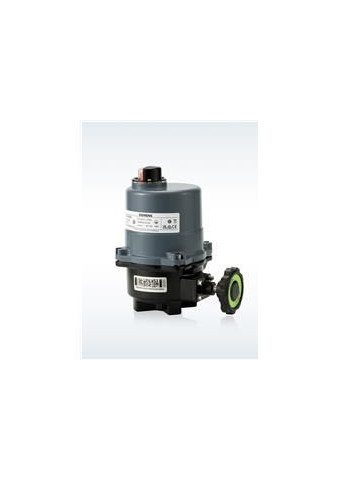

Siemens SQL341E40
Electromotoric actuator, 40 Nm, 90°, AC 230 V, on/off and 3P For operation of VFW41.., VFL41.. butterfly valves from DN80 to DN125 as shutoff and control valves in heating, ventilation and air conditioning systems. Direct assembly, no mounting kits required. Technical Specifications Power consumption: 45 VA Positioning time: 50 Hz:24 s Spring return function: No Degree of protection: IP67 Ambient temperature, operation: -20…65 °C -4…149 ºF Medium temperature: -30…120 °C Ambient humidity, operation: 15…100 % r.h. Dimensions (W x H x D): 145 x 192 x 171 mm Mounting position: Upright to horizontal Operating voltage: AC 207…253 V, 230 V Auxiliary switch: 2
