PXC7.400S View larger

PXC7.400S

Automation Station, BACnet/IP, BACnet/SC, 200 data points

More details

S55375-C110

New product

Price on request

PXC7.400S

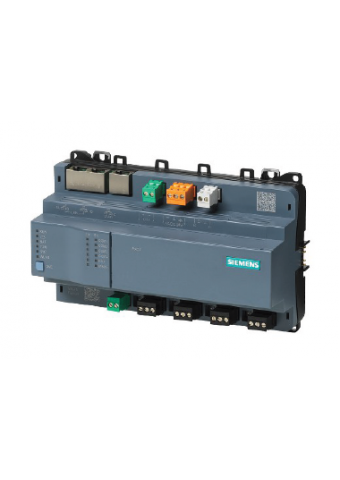

Freely programmable automation station for HVAC and building service plants.
  • Modular automation station and system controller for HVAC and building services systems
  • Comprehensive management and system functions
  • Freely programmable (close resemblance to CEN standard 11312). All function blocks, available in libraries, can be graphically connected.
  • Allows for the direct connection of I/O modules TXM. Up to a load of 300 mA can be powered directly.
  • Integrates up to 200 Modbus RTU and/or Modbus TCP data points or subsystems
  • Integrates up to 120 BACnet MS/TP devices
  • Web interface
  • Remote access via Cloud
  • Energy reserve (Supercap) to support real-time clock (7 days)
  • Engineering and commissioning with the user-friendly tool ABT Site using graphical function charts
  • BTL tested BACnet communication on IP (BACnet/IP and BACnet/SC) or BACnet MS/TP, in compliance with the BACnet standard including B-BC profile (Rev. 1.15)
  • WLAN interface for engineering and commissioning
