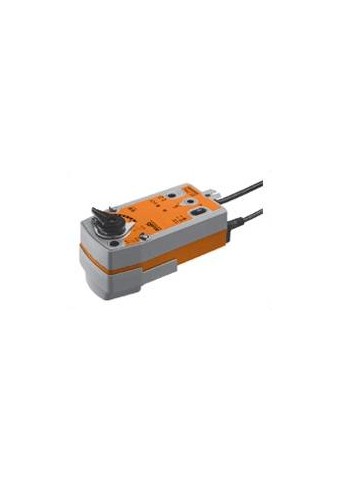

SRF24A-SR-S2-5
Spring-return actuator NC 20 Nm, 90 s, 90° AC/DC 24 V, modulating, 2 x SPDT IP 54, Manual override with integrated position stop Running time spring < 20 s Control DC 0...10 V Operating range DC 2...10 V Position feedback DC 2...10 V Connection PVC cable 1m Auxiliary switch 2 integral Emergency control closedYES with mounted kit BFV
New product
Belimo SRF24A-SR-S2-5
Viewed products
-
SRF24A-SR-S2-5
Spring-return actuator NC 20 Nm, 90...
10 other products in same category
AVK230A-3
SuperCap globe valve actuator 2000 N, 32 mm, AC 230 V, 3-point Actuating time motor 4.7 s/mm IP 54, Manual override temporary Connection PVC cable 1m Stroke direction / closing point selectable (top/bottom) Power-Off-Position adjustable
D6100N
2-way Butterfly valve, PN 6 / 10 / 16 Flange with Wafer types, DN 100, kvmax 580 m³/h Housing EN-JS1030 (GGG 40), epoxy-powder coating Closing element 1.4301 (stainless steel) Medium temperature -20...120°C Leakage rate A, tight
EP015R-R6+BAC
EP015R-R6+BAC Electr. 6-way PI-CCV EPIV Internal thread Rp 1/2", DN 15, Vnom 1260 l/h AC/DC 24 V, modulating, communicative, Modbus RTU, BACnet MS/TP, MP-Bus Operating range DC 2...10 V Position feedback DC 2...10 V IP54, Manual override with push-button, can be locked Connection Cable 1 m PVC
R3015-1-1-B2
6-way characterised control valve Internal thread Rp 1/2", DN 15, ps 1600, kvs1 1.0, kvs2 1.0 Housing nickel-plated brass Valve cone chrome-plated brass Sealing PTFE / EPDM Characterising disk stainless steel Medium temperature 6...80°C Leakage rate A air bubble tight (EN 12266-1)
R3015-S1
3-way change-over ball valve, ps 1600 kPa Internal thread 1/2", DN 15, kvs 15 m³/h Housing brass body nickel-plated Closing element stainless steel Stem stainless steel Stem seal O-ring EPDM Valve seat PTFE, O-ring EPDM Medium temperature -10...120°C Path A – AB: leakage rate A, air bubble tight (EN 12266-1) Bypass B – AB: leakage class I, max. 1% of the...
EP020R-R6+BAC
EP020R-R6+BAC Electr. 6-way PI-CCV EPIV Internal thread Rp 3/4", DN 20, Vnom 2340 l/h AC/DC 24 V, modulating, communicative, Modbus RTU, BACnet MS/TP, MP-Bus Operating range DC 2...10 V Position feedback DC 2...10 V IP54, Manual override with push-button, can be locked Connection Cable 1 m PVC
R3015-1-1P3-B2
6-way characterised control valve Internal thread Rp 1/2", DN 15, ps 1600, kvs1 1.0, kvs2 1.3 Housing nickel-plated brass Valve cone chrome-plated brass Sealing PTFE / EPDM Characterising disk stainless steel Medium temperature 6...80°C Leakage rate A air bubble tight (EN 12266-1)
R3020-BL2
3-way change-over ball valve, ps 1600 kPa Internal thread 3/4", DN 20, kvs 11 m³/h Housing brass body nickel-plated Closing element chrome-plated brass Stem nickel-plated brass Stem seal O-ring EPDM Valve seat PTFE, O-ring EPDM Medium temperature -10...100°C Leakage rate A, air bubble tight (EN 12266-1)
CQ24A-BAC
Rotary actuator (ZoneTight) 1 Nm AC/DC 24 V, communicative Communication BACnet MS/TP, Modbus RTU Running time motor 75 s / 90° IP40, Manual override with actuator (clicked out) Connection Cable 1 m PVC
R3015-1-P25-B2
6-way characterised control valve Internal thread Rp 1/2", DN 15, ps 1600, kvs1 1.0, kvs2 0.25 Housing nickel-plated brass Valve cone chrome-plated brass Sealing PTFE / EPDM Characterising disk stainless steel Medium temperature 6...80°C Leakage rate A air bubble tight (EN 12266-1)
