VWG42.10-1.6-1.6
6-port compact control ball valves, externally threaded, PN16, kvs left = 1.6, kvs right = 1.6
S55230-V265
New product

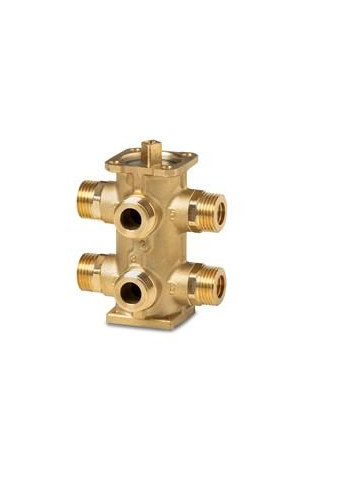

Siemens VWG42.10-1.6-1.6
6-port compact control ball valves, externally threaded, PN16, kvs left = 1.6, kvs right = 1.6 Used in heated/chilled ceilings and fan coils as control ball valve. For closed circuits.Control ball valve body made of hot-pressed brass CW617NFlat sealing, externally threaded connections G..B, as per ISO 228-1Can be combined with 6-port electromotoric rotary actuator range for applications with additional functions Technical Specifications Angular rotation: 90° Leakage rate: "Air tight" per EN 12266-1, class A DN: 10 kvs right: 1.6 m³/h kvs left: 1.6 m³/h Medium: Water with anti-freeze , Water , Low-temperature hot water Medium temperature: 5…90 °C Permissible operating pressure: 1600 kPa Material, valve body: Hot-pressed brass Material, inside set: PPSU PN class: PN 16 Connecting thread: G ½" GDB..9EΔpmax: 200 kPa
