VVF63.15-0.2
2-port valve, PN 40, DN 15, kvs 0.2, with flanged connections
S55210-V100
New product

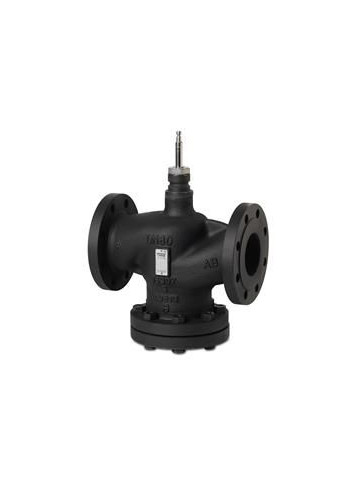

Siemens VVF63.15-0.2
2-port valve, PN 40, DN 15, kvs 0.2, with flanged connections With flanged connections to ISO 7005 For cooling, chilled, low and high temperature water, brine, heat transfer oils, saturated and superheated steam in open and closed circuits Technical Specifications Stroke: 20 mm Leakage rate: 0...0.01 % of kvs DN: 15 kvs: 0.2 m³/h Medium temperature: -20…220 °C Valve characteristic: Equal percentage Rangeability: > 50 Permissible operating pressure: 4000 kPa Material, valve body: Cast iron ASTM A216WCB (GP240GH) Material, inside set: Stainless steel PN class: PN 40 SKD.. Δpmax: 2000 kPa SKD.. Δps: 4000 kPa SKB.. Δpmax: 2000 kPa SKB.. Δps: 4000 kPa SKD.. Δpmax steam: 1200 kPa SKD.. Δps steam: 2500 kPa SKB.. Δpmax steam: 1200 kPa SKB.. Δps steam: 2500 kPa
