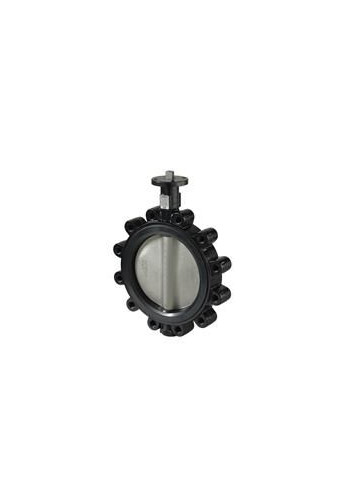

Butterfly Valve, flange, PN 6/10/16, DN50, kvs 100, tight closing
Lug type butterfly valve PN 6, PN 10, PN 16. For use as motorized or manual control or shut-off valves in heating, ventilation and air conditioning systems. In open and closed circuits, tight closing.SAL.., SQL36E..: Direct mounting


Technical Specifications

Angular rotation: 90°
Leakage rate: Tight shutoff, EN 12266-1, leakage rate A
DN: 50
kvs: 100 m³/h
Medium: Water , Water with anti-freeze
Medium temperature: -20…120 °C
Permissible operating pressure: 1600 kPa
Material, valve body: Cast iron EN-GJS-400-18-LT
Material, inside set: Stainless steel valve disc and shaft
PN class: PN 16
SAL..T20Δps: 1600 kPa
SQL36E50F04Δps: 1600
