22DTM-16
Duct sensor CO₂ / Humidity / Temperature active, BACnet, 0...5 V, 0...10 V, Probe length 180 mm, Probe diameter 19.5 mm
New product

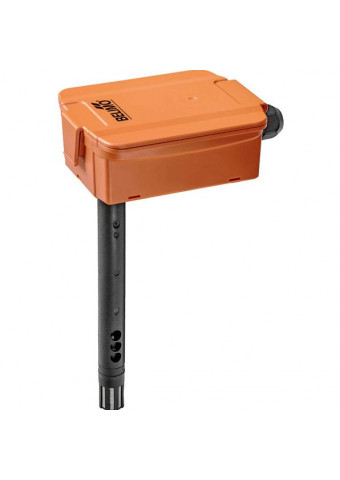

Belimo 22DTM-16
Duct sensor CO₂ / Humidity / Temperature active, BACnet, 0...5 V, 0...10 V, Probe length 180 mm, Probe diameter 19.5 mm Technical Specifications Application: Duct Electrical connection: Terminals Measured values: CO₂ Temperature Humidity Measuring range humidity: Adjustable via BACnet Default setting: 0...100% RH Measuring range temperature: Adjustable via BACnet Default setting: 0...50°C [-32...122°F] Measuring range velocity: Min. 0.3 m/s Max. 12 m/s Mounting type: Single point Output signal: BACnet 0...5 V 0...10 V Probe length: 180 mm Product type: Sensor Sensor type: Air quality Voltage AC/DC: AC/DC 24 V
