22DCK-11
Duct sensor CO₂ / VOC / CO₂+VOC mix / Temperature active, 0...5 V, 0...10 V, Probe length 180 mm, Probe diameter 19.5 mm
New product

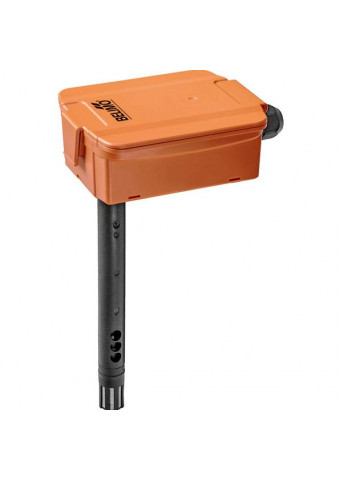

Belimo 22DCK-11
Duct sensor CO₂ / VOC / CO₂+VOC mix / Temperature active, 0...5 V, 0...10 V, Probe length 180 mm, Probe diameter 19.5 mm Technical Specifications Application: Duct Degree of protection: IP65, NEMA 4X Electrical connection: Terminals Measured values: CO₂ VOC Temperature Measuring range temperature: 0...50°C [32...122°F] Measuring range velocity: Min. 0.3 m/s Max. 12 m/s Mounting type: Single point Output signal: 0...5 V 0...10 V Probe length: 180 mm Product type: Sensor Sensor type: Air quality Voltage AC/DC: AC/DC 24 V
