22DC-13
Duct sensor CO₂ active, 4...20 mA, 0...5 V, 0...10 V, Probe length 150 mm, Probe diameter 19.5 mm
New product

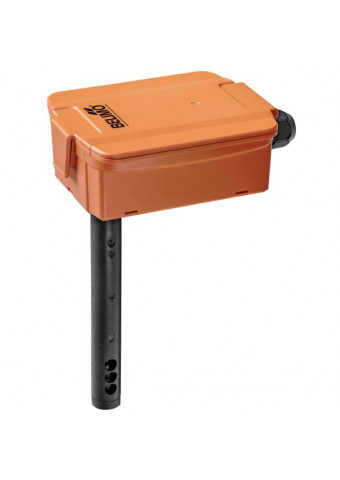

Belimo 22DC-13
Duct sensor CO₂ active, 4...20 mA, 0...5 V, 0...10 V, Probe length 150 mm, Probe diameter 19.5 mm Technical Specifications Application: Duct Electrical connection: Terminals Measured values: CO₂ Measuring range temperature: 0...50°C [32...122°F] Measuring range velocity: Min. 0.3 m/s Max. 12 m/s Mounting type: Single point Output signal: 4...20 mA 0...5 V 0...10 V Probe length: 150 mm Product type: Sensor Sensor type: Air quality Voltage AC/DC: AC/DC 24 V
