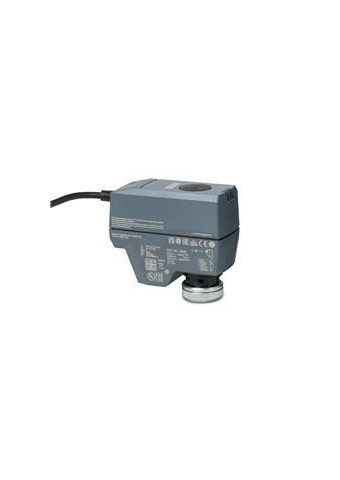

Elektromotorischer Stellantrieb, 300 N, 1.2...6.5 mm, AC/DC 24 V, DC 0...10 V, fail-safe
●For small valves 2W..K.., 3W.., 4W..●For zone valves VVP.., VXP.., VMP..●Typically in chilled ceiling, VAV and fan coil unit applications●Self calibrating to the valve stroke●Direct mounting with coupling nut, no tools required●Manually adjustable, position and actuator motion indication (LED)●Parallel operation of multiple actuators possible●Removable cable, standard length 1.5 m


Technical Specifications

Positioning force: 300 N
Stroke: 1.2 mm, 6.5 mm
Power consumption: 3.5 VA
Positioning time: 12.5 s for 2.5 mm stroke
Cable length: 1,5 m
Positioning signal: DC 0…10 V
Degree of protection: IP54
Ambient temperature, operation: 1…50 °C
Medium temperature: 1…110 °C
Ambient humidity, operation: 5...85 % r.h.
Dimensions (W x H x D): 121.7 x 95.6 x 49 mm
Mounting position: 360°
Operating voltage: AC 24 V, DC 24 V
Color: Gray
