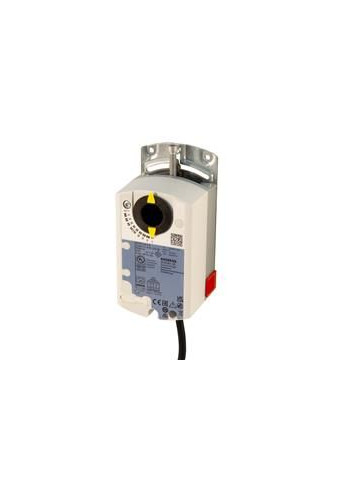

Fast running air damper actuators 8 Nm, without spring return
For shaft dia. 8...16 mm, min. shaft length 30 mm, square 6...12,8 mm, min. shaft length 20 mmButton for disengaging the gear train to enable manual overrideFor air conditioning units and air distribution systemsRunning time 30s


Technical Specifications

Torque: 8 Nm
Air damper area: 0,8 m²
Power consumption: 1.5 W
Positioning time: 30 s
Cable length: 0,9 m
Positioning signal: DC0/2…10 V
Degree of protection: IP54
Ambient temperature, operation: -40…70 °C
Dimensions (W x H x D): 71 x 137 x 60.6 mm
Operating voltage: DC 24 V
Position feedback: DC0/2…10 V
Auxiliary switch: 0
Number of full cycles: 100000
Number of partial cycles: 5000000
Rated impulse voltage: 800 V
Type of action: Type 1
Pollution degree: 3
Mounting location: interior, weather-protected
Product conformity: CE , RCM , EAC
