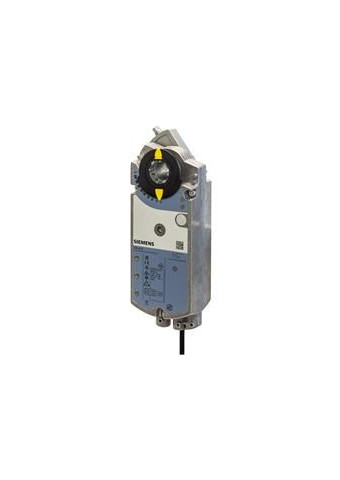

GIB146.1E
Rotary air damper actuator, AC 24 V, 3-point, 35 Nm, without spring return, 150 s, adjustable auxiliary switches for additional functions
S55499-D341
New product
Siemens GIB146.1E
Drive for air dampers, AC/DC 24V 3-point, 35 Nm
- with 2 auxiliary switches
- maintenance-free, reversible synchronous motor
- energy-saving function for precise runtime
- selectable rotation direction
- self-centering shaft adapter
- robust aluminum die-cast housing
- manual adjustment and position display
Technical data:
Runtime: 150 s at a 90-degree
angle at 50 Hz
Rated angle: 90 degrees
Max. angle: 95 degrees
Operating voltage: 24 VAC/DC
Power consumption: 2.7 VA
Noise level: max. 35 (dB)
Housing protection class: IP 40 (IEC529)
CE certified
Brand: Siemens
Type: GIB146.1EViewed products
