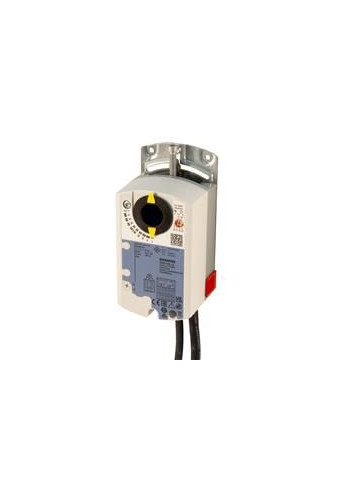

Fast running air damper actuator, AC/DC 24 V, Open-close/3-position control, 5 Nm, 30 s, 2 auxiliary switches
Electronic motor driven actuators for open-close and three-position controlNominal torque 5 NmOperating voltage AC 24 V ~ / DC 24…48 V ⎓Running time for 90° rotary angle 30 sMechanically adjustable span between 0...90°Pre-wired with 0.9 m long connection cablePosition indication: mechanical2 auxiliary switches for supplementary functions


Technical Specifications

Torque: 5 Nm
Air damper area: 0,8 m²
Angular rotation: 90°
Power consumption: 1.9 VA, 1.2 W
Positioning time: 30 s
Cable length: 0,9 m
Connection cable: 0.9 m
Positioning signal: Open-close/3-position
Degree of protection: IP54 nach EN 60529
Ambient temperature, operation: -32…55 °C
Ambient humidity, operation: 95 % r.h.
Dimensions (W x H x D): 71 x 137 x 60.6 mm
Operating voltage: AC 24 V, DC 24…48 V
Auxiliary switch: 2
Number of full cycles: 100000
Number of partial cycles: 5000000
Rated impulse voltage: 800 V
Type of action: Type 1.B
Pollution degree: 3
Mounting location: interior, weather-protected
Product conformity: CE , RCM
