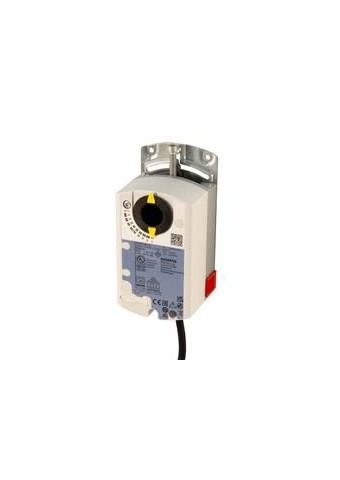

Fast running air damper actuator, AC/DC 24 V, modulating control, 5 Nm, 90 s
Electronic motor driven actuators for modulating controlNominal torque 5 NmOperating voltage AC 24 V ~ / DC 24…48 V ⎓Running time for 90° rotary angle 90 sMechanically adjustable span between 0...90°Pre-wired with 0.9 m long connection cablePosition indication: mechanical and electricalSelf-adaptation of rotational angle range


Technical Specifications

Torque: 5 Nm
Air damper area: 0,8 m²
Angular rotation: 90°
Power consumption: 1.3 VA, 0.9 W
Positioning time: 90 s
Cable length: 0,9 m
Connection cable: 0.9 m
Positioning signal: 0/2...10 V
Degree of protection: IP54 as per EN 60529
Ambient temperature, operation: -32…55 °C
Ambient humidity, operation: 95 % r.h.
Dimensions (W x H x D): 71 x 137 x 60.6 mm
Operating voltage: AC 24 V, DC 24…48 V
Auxiliary switch: 0
Number of full cycles: 100000
Number of partial cycles: 5000000
Rated impulse voltage: 800 V
Type of action: Type 1
Pollution degree: 3
Mounting location: interior, weather-protected
Product conformity: CE , RCM
