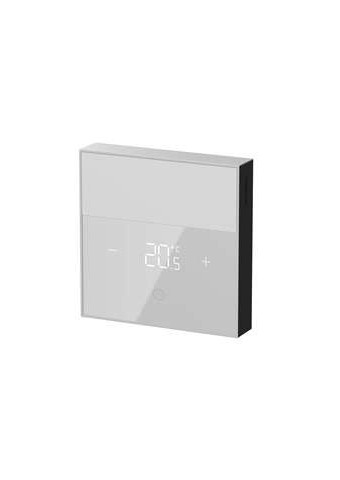

Connected Home Wired Thermostat
The room thermostat RDZ100ZB is part of Siemens Connected Home ecosystem. It is used to control the room temperature in heating systems.Features and functions:Room temperature controlCommunicates with Connected Home Hub via Zigbee network2-position/TPI control with On/Off output for heatingWith built-in relayOpen window detectionFrost protectionTime schedule via mobile application "Connected Home" (downloadable from Google Play™ or Apple App Store®)Adjustable commissioning and control parameters via the mobile applicationBattery-powered (2x AA batteries)


Technical Specifications

Operating voltage: DC 3 V
Material, protection pocket: None
Setpoint setting range: 5…35 °C
Sensing element: Resistance sensor
Communication: With connected Home Hub via Zigbee network
Relay outputs: Change-over contact , Potential-free
Relay output, switching current: 5 (2) A
Switching voltage: AC 24…230 V
Switching current: Lx - L1 Maximum 5 (2) A Lx - L2 Maximum 5 (2) A
Design: Room sensor
Radio frequency: 2.4…2.4835 GHz MHz
Type of fixing: Wall mounting with screws
Degree of protection: IP30
Dimensions (W x H x D): 88 x 88 x 20.5 mm
Color: White
