NM230P

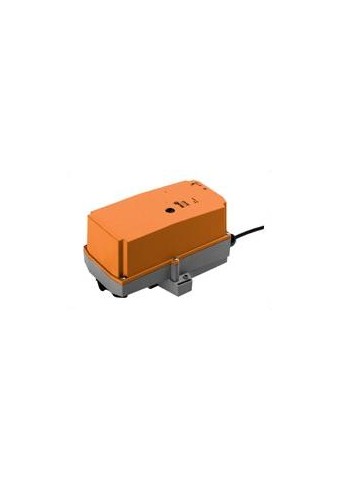

Damper actuator 10 Nm, 150 s, 95° AC 230 V, Open/Close, 3-point IP 66/67, Manual override by means of push-button Control with single- / 2-wire contact Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle clamp
New product
Belimo NM230P
Viewed products
-
NM230P
Damper actuator 10 Nm, 150 s, 95° AC...
7 other products in same category
NM230P-S
Damper actuator 10 Nm, 150 s, 95° AC 230 V, Open/Close, 3-point, 1 x SPDT IP 66/67, Manual override by means of push-button Control with single- / 2-wire contact Auxiliary switch 0...100 % adjustable Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle clamp...
NM230PSR
Damper actuator 10 Nm, 150 s, 95° AC 230 V, modulating IP 66/67, Manual override by means of push-button Control DC 0...10 V Operating range DC 2...10 V Position feedback DC 2...10 V Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle clamp
NM24P
Damper actuator 10 Nm, 150 s, 95° AC/DC 24 V, Open/Close, 3-point IP 66/67, Manual override by means of push-button Control with single- / 2-wire contact Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle clamp
NM24P-MF
Damper actuator 10 Nm, 150 s adjustable, 95° AC/DC 24 V, modulating, MFT IP 66/67, Manual override by means of push-button Control DC 2...10 V, 0...32 V adjustable Operating range DC 2...10 V, 0...32 V adjustable Position feedback DC 2...10 V, 0...10 V,adjustable Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation...
NM24P-MP
Damper actuator 10 Nm, 150 s adjustable, 95° AC/DC 24 V, modulating, MP-Bus Operating range DC 2...10 V, 0...32 V adjustable Position feedback DC 2...10 V, 0...10 V, adjustable IP 66/67, manual override with push-button Connection cable FRNC 1 m Selectable direction of rotation (right/left)
NM24P-S
Damper actuator 10 Nm, 150 s, 95° AC/DC 24 V, Open/Close, 3-point, 1 x SPDT IP 66/67, Manual override by means of push-button Control with single- / 2-wire contact Auxiliary switch 0...100 % adjustable Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle...
NM24P-SR
Damper actuator 10 Nm, 150 s, 95° AC/DC 24 V, modulating IP 66/67, Manual override by means of push-button Control DC 0...10 V Operating range DC 2...10 V Position feedback DC 2...10 V Connection cable FRNC 1 m Direction of rotation reversible (right/left) Angle of rotation limit. mechanical integral Spindle driver universal spindle clamp
